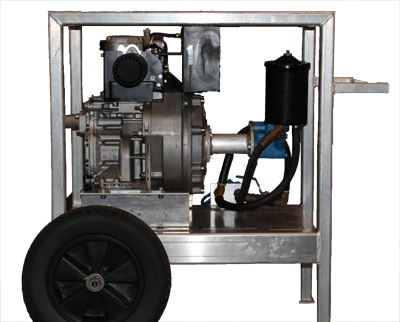

AquaGuard Triton Power Pack

AquaGuard Triton 35 Hydraulic Power Pack

Function

The hydraulic power unit is designed to supply hydraulic power for the operation of the AquaGuard Triton 35 skimming system. The hydraulic power unit is an electric start diesel motor driven hydraulic power unit (with cranck start option) which is wheel mounted which drives the Triton 35 skimmer. The HPU, skimmer and pump make up the Triton 35 skimming system.

Specifications

Manufacture(s)

AquaGuard

Model

F3L912

Prime mover

Yanmar/Hatz diesel engine

H.P.

10.0 h.p. continuous

L x W x H (in)

40" x 40" x 36"

Weight (lbs)

400

Capacity of hydraulic tank

17 gal.

Capacity of fuel tank

3.5 ltr

Hydraulics

10 gpm @ 1500 psi, pressure compensating pump with 2 separate flow controls.

Transportation Modes

C-130

DC-6

DC-3

737

Beaver

Otter

Cessna 206

Cessna 185

Heli

Barge

Tug (only)

Lrg F/V

Sml F/V

P/U

check mark
check mark
check mark
check mark
check mark
check mark
check mark
check mark
check mark
check mark
check mark
check mark
check mark
check mark

Locations & Quantities

Zone 1
Ketchikan
55°23'47.94"N 131°43'45.85"W

Zone 2
Craig
55°29'18.28"N 133°08'24.67"W

Zone 3
Petersburg
56°48'28.84"N 132°58'13.91"W
Wrangell
56°28'14.69"N 132°23'06.98"W

Zone 4
Kake
56°58'21.84"N 133°56'26.67"W

Zone 5
Sitka
57°06'53.48"N 135°23'31.89"W

Zone 6
Gustavus
58°25'21.35"N 135°42'42.36"W
Pelican
57°57'27.84"N 136°13'32.69"W

Zone 7
Juneau
58°17'26.76"N 134°23'33.26"W

Zone 8
Haines
59°14'08.76"N 135°27'51.73"W
Skagway
59°27'09.90"N 135°19'20.26"W

Zone 9
Yakutat
59°32'46.34"N 139°44'05.36"W

(8)
Warehouse

(4)
Connex #57
