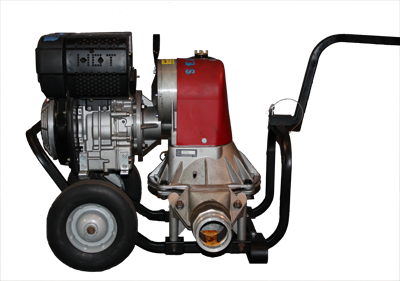

The AquaGuard Triton 35 is a high speed, diaphram pump. The pump can also be applied to a variety of transfer pumping duties and is particularly usefil in difficult applications.
The pumps handles crude oil, indefinte dry running, handles sand and grit, flows up to 200 gal per hour, and ais automatic priming.
Manufacture(s)
AquaGuard
Model
F3L912
Pump type
Diaphram
Dimensions L x W x H (in)
31.5" x 20.7" x 18.1"
Weight (lbs)
155
Inlet diameter (in)
3"
Discharge diameter (in)
3"
Housing material
Cast aluminum
Prime mover
Diesel power plant
Power required (hp)
N/A
Hydraulic requirements
N/A
Pump speed (rpm)
1,500
Capacity (bbl/hr)
200
Discharge pressure (psi)
N/A
