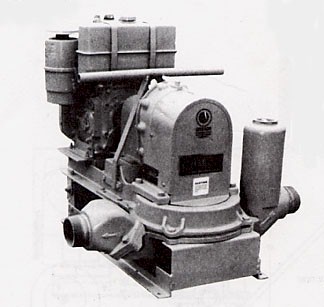

The CH&E diesel diaphragm 3" pump serves as a transfer pump for storage tanks, barges and portable bladders.
Manufacture(s)
CH&E
Model
Series 6525
Pump type
Diaphram
Dimensions L x W x H (in)
35" x 29" x 28"
Weight (lbs)
325
Inlet diameter (in)
3"
Discharge diameter (in)
3"
Housing material
Cast iron
Prime mover
Hatz E673 diesel engine
Max. horsepower (hp)
6
Max suction lift (ft)
25'
Max discharge head (ft)
25'
Capacity (bbl/hr)
143
C-130
DC-6
DC-3
737
Beaver
Otter
Cessna 206
Cessna 185
Heli
Barge
Tug (only)
Lrg F/V
Sml F/V
P/U
Zone 1
Ketchikan
55°23'47.94"N 131°43'45.85"W
Zone 2
Craig
55°29'18.28"N 133°08'24.67"W
Zone 3
Petersburg
56°48'28.84"N 132°58'13.91"W
Wrangell
56°28'14.69"N 132°23'06.98"W
Zone 4
Kake
56°58'21.84"N 133°56'26.67"W
Zone 5
Sitka
57°06'53.48"N 135°23'31.89"W
Zone 6
Gustavus
58°25'21.35"N 135°42'42.36"W
Pelican
57°57'27.84"N 136°13'32.69"W
Zone 7
Juneau
58°17'26.76"N 134°23'33.26"W
Zone 8
Haines
59°14'08.76"N 135°27'51.73"W
Skagway
59°27'09.90"N 135°19'20.26"W
Zone 9
Yakutat
59°32'46.34"N 139°44'05.36"W
(1)
Warehouse
(1)
Delta Western Facility
