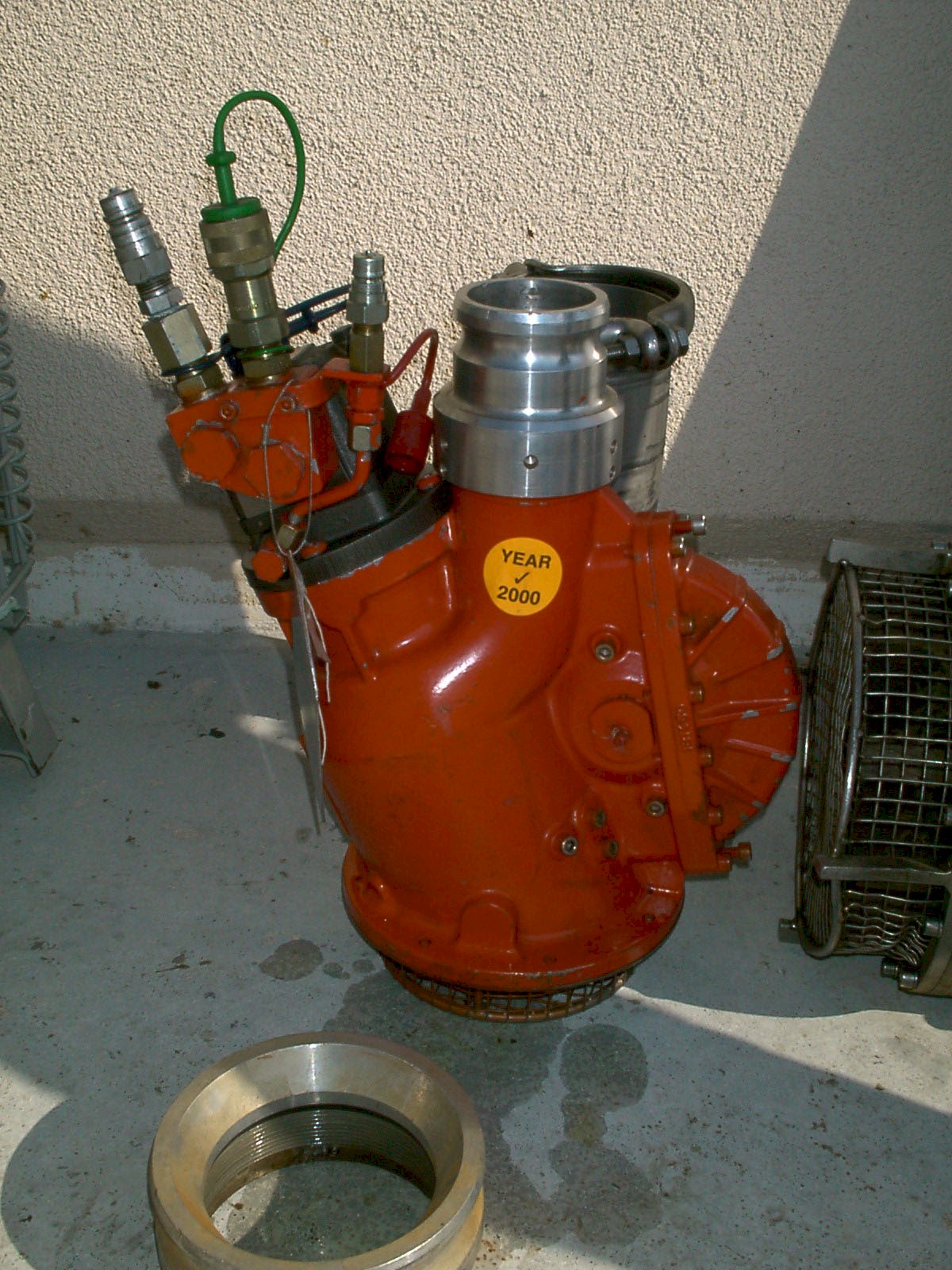

The Desmi DOP-160 used in conjunction with either the 249 bbl Response Barges or a portable hydraulic power pack as a transfer pump. The pump is capable of transferring recovered products ranging from water to high viscosity oil from a 249 bbl response barge or containment bladder.
The DOP-160 is limited by the need for a sizable hydraulic power unit that is capable of producing 21gpm of hydraulic fluid and up to 3,000 psi of pressure.
Manufacture(s)
RO-Clean
Model
DOP-160
Pump type
Progressive cavity
Dimensions L x W x H (in)
15.3" x 9.4" x 20.5"
Weight (lbs)
68
Inlet diameter (in)
4"
Discharge diameter (in)
4"
Housing material
Aluminum
Prime mover
Hydraulic power unit
Power required (hp)
30 hp
Hydraulic requirements
21 gpm, 3,050 psi max.
Pump speed (rpm)
800 (max)
Capacity (bbl/hr)
195
Discharge pressure (psi)
147 psi
C-130
DC-6
DC-3
737
Beaver
Otter
Cessna 206
Cessna 185
Heli
Barge
Tug (only)
Lrg F/V
Sml F/V
P/U
Zone 1
Ketchikan
55°23'47.94"N 131°43'45.85"W
Zone 2
Craig
55°29'18.28"N 133°08'24.67"W
Zone 3
Petersburg
56°48'28.84"N 132°58'13.91"W
Wrangell
56°28'14.69"N 132°23'06.98"W
Zone 4
Kake
56°58'21.84"N 133°56'26.67"W
Zone 5
Sitka
57°06'53.48"N 135°23'31.89"W
Zone 6
Gustavus
58°25'21.35"N 135°42'42.36"W
Pelican
57°57'27.84"N 136°13'32.69"W
Zone 7
Juneau
58°17'26.76"N 134°23'33.26"W
Zone 8
Haines
59°14'08.76"N 135°27'51.73"W
Skagway
59°27'09.90"N 135°19'20.26"W
Zone 9
Yakutat
59°32'46.34"N 139°44'05.36"W
(2)
1 -
OSRV
Rudyerd Bay
1 -
ORB #2
(1)
ORB #1
Gustavus
(2)
1 -
OSRV
Neka Bay
1 -
ORB #9
(1)
1 -
ORB #8
Haines
(1)
1 -
ORB #4
Click for a copy of the operators manual.
