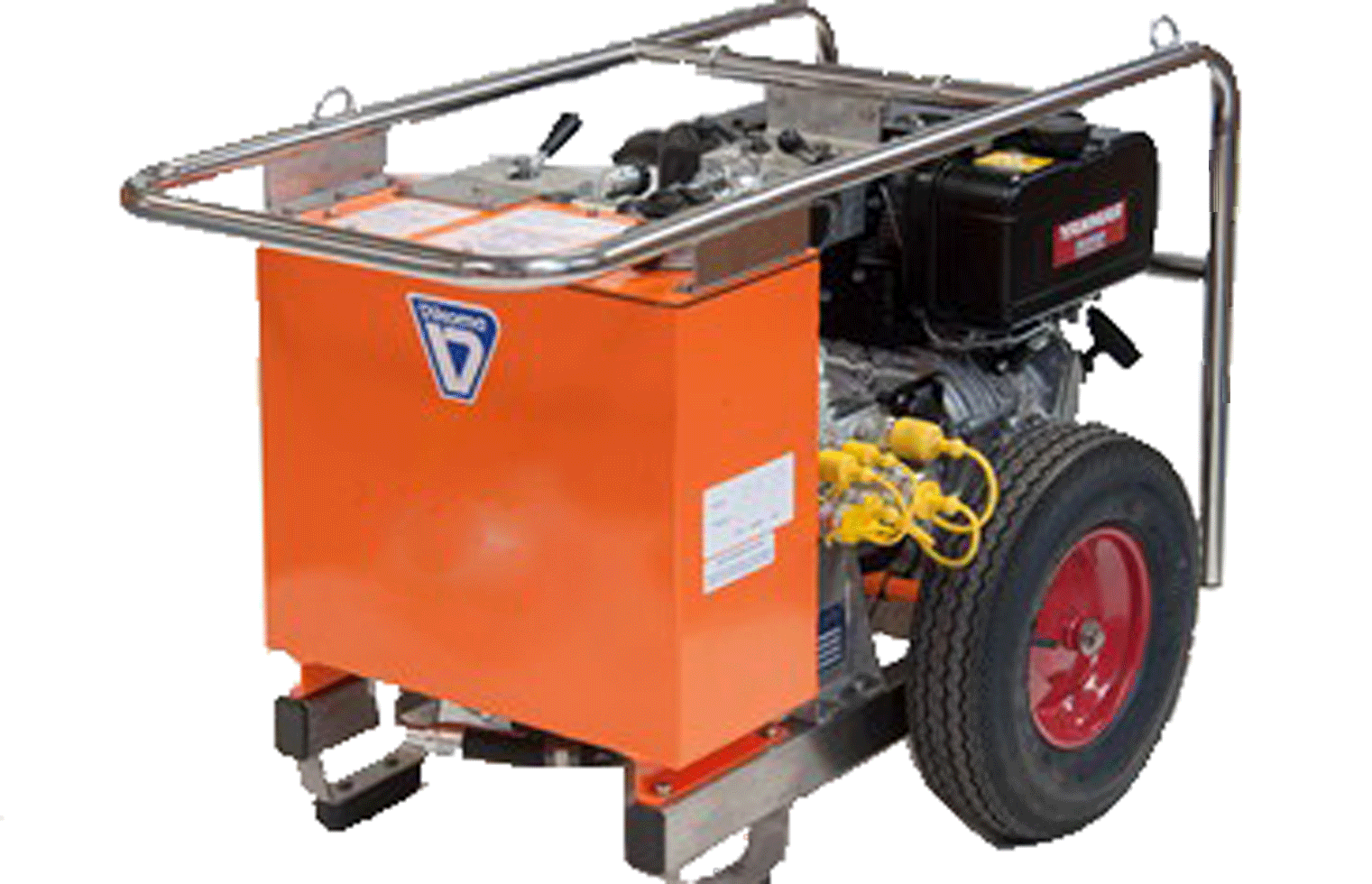

The Vikoma Komara AD1 hydraulic power unit is designed to supply hydraulic power for the operation of the Komara 12K skimming system. The hydraulic power unit is a electric start diesel motor driven hydraulic power unit which is wheel mounted and capable of 7.5 HP continuous. Additionally, a Spate 75C double diaphragm pump is mounted to the prime mover (Lister Petter engine) and is the transfer pump for the Komara 12K skimmer.
Manufacture(s)
Vikoma
Model
AD1
Prime mover
Lister Petter
H.P.
7.5 hp @ 3,600 rpms
L x W x H (in)
24" x 48" x 32"
Weight (lbs)
350
Capacity of hydraulic tank
4 gal.
Capacity of fuel tank
1 ltr
Intake size (in)
3"
Discharge size (in)
3"
Pump type
Spate 75C double diaphram
Pump rate (bbl/hr)
166
C-130
DC-6
DC-3
737
Beaver
Otter
Cessna 206
Cessna 185
Heli
Barge
Tug (only)
Lrg F/V
Sml F/V
P/U
Zone 1
Ketchikan
55°23'47.94"N 131°43'45.85"W
Zone 2
Craig
55°29'18.28"N 133°08'24.67"W
Zone 3
Petersburg
56°48'28.84"N 132°58'13.91"W
Wrangell
56°28'14.69"N 132°23'06.98"W
Zone 4
Kake
56°58'21.84"N 133°56'26.67"W
Zone 5
Sitka
57°06'53.48"N 135°23'31.89"W
Zone 6
Gustavus
58°25'21.35"N 135°42'42.36"W
Pelican
57°57'27.84"N 136°13'32.69"W
Zone 7
Juneau
58°17'26.76"N 134°23'33.26"W
Zone 8
Haines
59°14'08.76"N 135°27'51.73"W
Skagway
59°27'09.90"N 135°19'20.26"W
Zone 9
Yakutat
59°32'46.34"N 139°44'05.36"W
(1)
Connex #72
