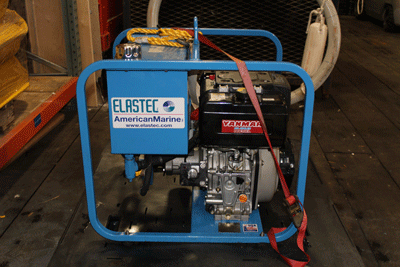

Elastec Hose Reel Power Pack

Elastec Hydraulic Power Pack

Function

The D9-10M hydraulic power unit is designed to supply hydraulic power for the operation of the Elastec Open Ocean Boom reel pack. The hydraulic power unit is a pull start diesel motor driven hydraulic power unit which is frame mounted.

Specifications

Manufacture(s)

Elastec/American Marine

Model

D9

Prime mover

Yanmar diesel engine

H.P.

8.3 h.p. continuous

L x W x H (in)

40" x 40" x 36"

Weight (lbs)

225

Capacity of hydraulic tank

8 gal.

Capacity of fuel tank

4.7 ltr

Hydraulics

10 gpm @ 1500 psi, pressure compensating pump with 2 separate flow controls.

Transportation Modes

C-130

DC-6

DC-3

737

Beaver

Otter

Cessna 206

Cessna 185

Heli

Barge

Tug (only)

Lrg F/V

Sml F/V

P/U

check mark
check mark
check mark
check mark
check mark
check mark
check mark
check mark
check mark
check mark
check mark
check mark
check mark
check mark

Locations & Quantities

Zone 1
Ketchikan
55°23'47.94"N 131°43'45.85"W

Zone 2
Craig
55°29'18.28"N 133°08'24.67"W

Zone 3
Petersburg
56°48'28.84"N 132°58'13.91"W
Wrangell
56°28'14.69"N 132°23'06.98"W

Zone 4
Kake
56°58'21.84"N 133°56'26.67"W

Zone 5
Sitka
57°06'53.48"N 135°23'31.89"W

Zone 6
Gustavus
58°25'21.35"N 135°42'42.36"W
Pelican
57°57'27.84"N 136°13'32.69"W

Zone 7
Juneau
58°17'26.76"N 134°23'33.26"W

Zone 8
Haines
59°14'08.76"N 135°27'51.73"W
Skagway
59°27'09.90"N 135°19'20.26"W

Zone 9
Yakutat
59°32'46.34"N 139°44'05.36"W

(1)
Warehouse

Click for a copy of the operators manual.
