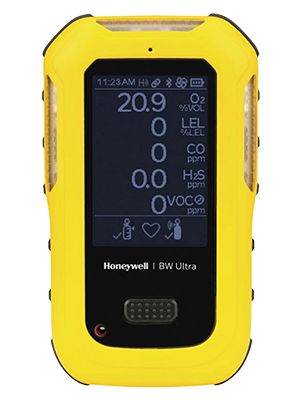

The BW Technology Air Monitor is used to perform initial site characterization of a spill to identify hazardous atmospheric conditions prior to initiating response actions. The Ultra 5 PID will allow for continual air monitoring to be performed during response actions to insure the safety of the responders.
Air monitors are calibrated on a regular business and prior to each field use. Calibration and bump testing is accomplished in Ketchikan before equipment is deployed.
Manufacture(s)
Honeywell
Model
BW Ultra
Size
5.7"L x 2.9"W x 1.5"H
Weight (oz)
13.5
Detector
Class I, Div. I, Gr. A, B, C, D PID detectable VOC's plus O2, H2S, CO, C6H6, LEL
Battery power
Rechargeable Ni-cad/Lithium battery pack; AA alkaline battery adapter; field replaceable; 15 continuous operating hours
Operating environment
14° to 104° F (-10° to 40°C)
Limitation(s)
Unit must be calibrated prior to use and batteries must be charged.
