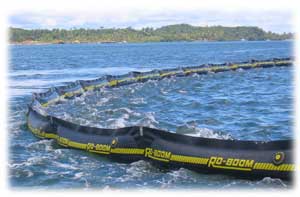

Pressure Inflatable Curtain Boom

Function

Curtain, Pressure Inflatable Boom is developed in order to give optimum protection in protected water environments with no greater than 3 ft significant wave height.

Specifications

Manufacture(s) Ro-Clean Desmi Model Ro-Boom 1000
Boom type Curtain, pressure-inflatable Floatation 10 meter separate inflation chambers
Freeboard (in) 14" Draft (in) 16"
Boom height (in) 30" (36" flat) Standard length (ft) 82'
Skirt material Polyester reinforced Neoprene End connectors ASTM
Weight (lb/ft) 3.7 lbs/ft Ballast weight (lb/ft) 0.7
Total Strength (lbs) 22,500 Ballast material 1/4" NiCroMan steel
Operating environment/limitations Boom is limited to work in protected waters or seas 3 ft. or less in wave height.

Transportation Modes

C-130 DC-6 DC-3 737 Beaver Otter Cessna 206 Cessna 185 Heli Barge Tug (only) Lrg F/V Sm F/V Pickup

Locations & Quantities

Zone 6
Gustavus
58°27'16.61''N 135°53'18.35"W
Zone 7
Juneau
58°17'26.57''N 134°23'37.89"W
(1,500')
ORB 1
(4,000')
2,000' ORB 9
2,000' Warehouse
