Response Vessels (OSRV)

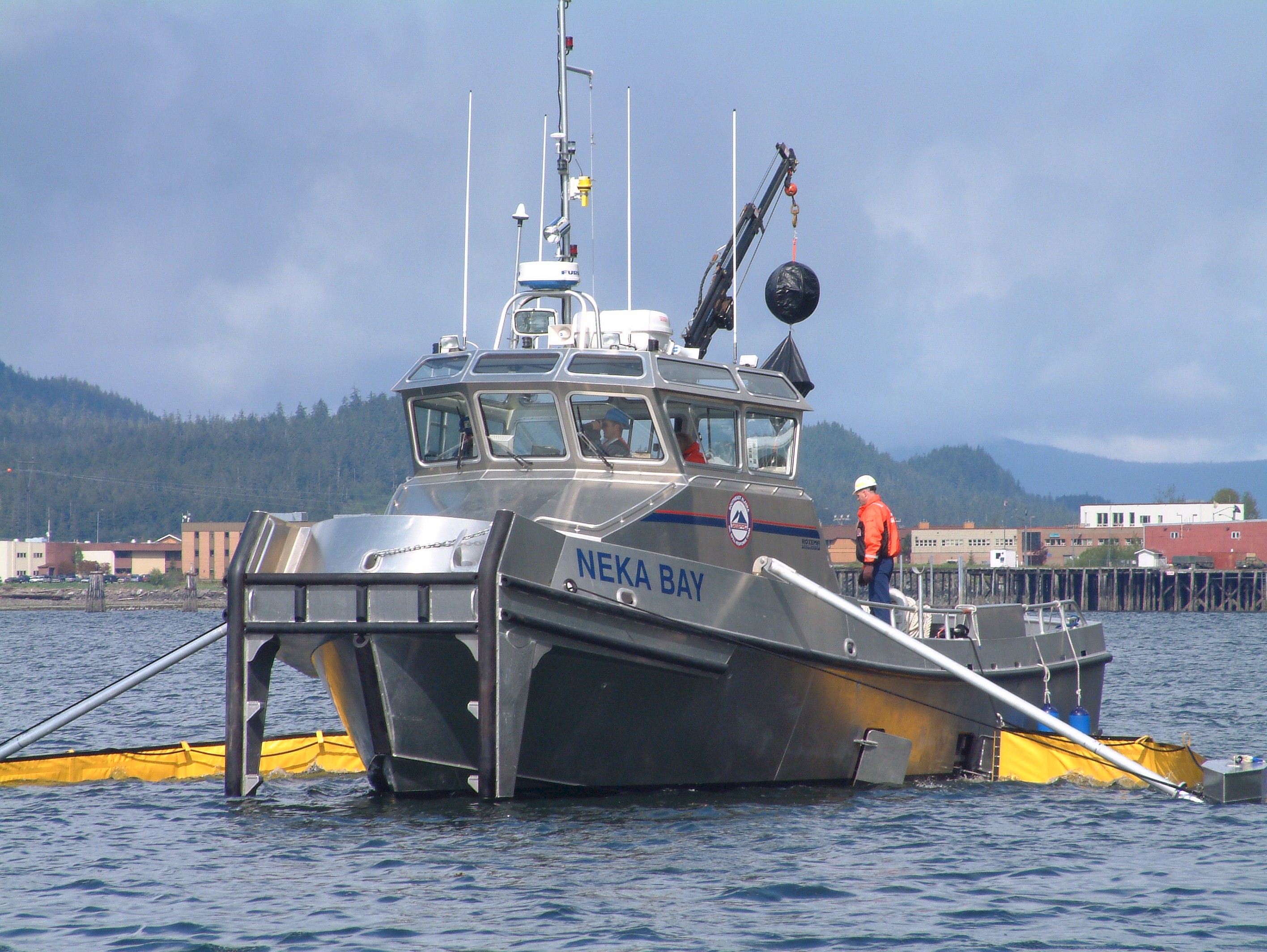

Bay Class Boat

Function

The Bay Class vessel is designed as a fast response skimming vessel and logistics/support vessel for spill responses. The Bay Class boat can operate in open ocean, protected and inland waters to skim free-floating oil, act as a forward command post, and support on-scene operations.

Specifications

Manufacture Rosema Boat Works Model 48' OSRV
Gross tonnage 13 (Admeasured) Net tonnage 36
Length (ft) 48' hull
52' overall
Width (ft) 16'
Depth (ft) 5.5' Hull material Aluminum
Propulsion Twin diesel 3196 Cat
600 hp ea
Gears Twin Disc 5114IV
Generator Northern Lights
5kw
Towing capacity 20,000 lb bollard pull
Top speed 27 kts Cruise speed 20 kts
26 hrs
Electronics VHF Radio (3), Furuno Radar
Depth Sounder
GPS slaved to chart program
Mechanical 900 gal fuel
Desmi DOP-160 offload pump
HIAB crane 5,000 lb
Onboard skimmer(s) Lori 2-2.5 (2) Onboard storage 55 bbl
Operating personnel (min) 3 Limitations Can operate only in protected waters
where seas are no greater than 8 ft.

Transportation Modes

C-130 DC-6 DC-3 737 Beaver Otter Cessna 206 Cessna 185 Heli Barge Tug (only) Lrg F/V Sm F/V Pickup
Self transport only

Locations & Quantities

Zone 1
Ketchikan
55°23'47.94"N 131°43'45.85"W
Zone 7
Juneau
58°17'26.57"N 134°23'37.89"W
(1)
OSRV Rudyerd Bay
(1)
OSRV Neka Bay
